Applications :
- The cables are designed for installation between railway running rails and they provide communications between trains and trackside equipments.
Standards :
- TR2029
 |
 |

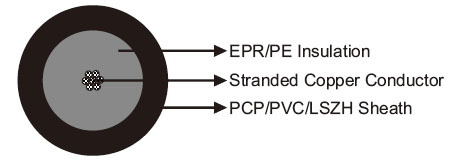

Construction :
- Conductors : Stranded copper conductor.
- Insulation : EPR/PE.
- Sheath : PCP/PVC/LSZH.
Electrical Characteristics at 20 °C :
-
Nominal Conductor Cross Section mm2 1.5 2.5 Maximum Conductor Resistance Ω/km 13.7 7.41 Minimum Insulation Resistance MΩ.km 5000 5000 Capacitance to Earth @1KHz pF/km 0.1 0.1
Mechanical and Thermal Properties :
- Minimum Bending Radius :6×OD (static); 15×OD (dynamic).
- Temperature Range : -20°C to +85°C.
Dimensions and Weight :
| Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No.×mm |
No. & Nominal Diameter of Strands No/mm |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| RS2029-3G5G-1G1.5 | 1×1.5 | 30/0.25 | 0.8 | 1.4 | 6.6 | 70 |
| RS2029-2YY-1G2.5 | 1×2.5 | 7/0.67 | 3.5 | 2.0 | 13 | 183 |
| RS2029-2YH-1G2.5 | 1×2.5 | 7/0.67 | 0.7 | 4.5 | 13 | 219 |
 |
 |
 |
 |
 |
|
UV Resistant |
Mineral Oil Resistant |
Rated voltage |
Buried in Ciround |
Laid In Ducts |
 |
LSZH Sheath |
|
